Eurotech Multiflex 735SLY

Max. Machining Diameter- 12.6”
Bar Capacity-2.55”
Max Swing-23.62”
Max Speed-4000RPM
Spindle Nose- A2-6”
Spindle Bore-3.07”
Max Chuck Dia-8(10)
Motor Power- 30HP

Sub-Spindle
Max Speed- 4000RPM
Spindle Nose- A2-5”
Spindel Bore- 2.17”
Max Chuck Dia- 6.5”
Motor Power- 15HP

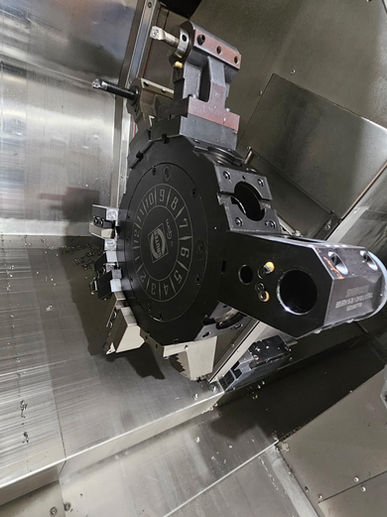

Turret
Max no. Of Cutting Tools- 72
Turret Stations- 12

Live Tooling
Live Tool Speed- 6000RPM
Motor HP-30min. Rating- 7.3HP

C-Axis
Min. Programmable Value- Deg. .001

Axes
X-Axis Travel- 8.07”
Z-Axis Travel- 22”
Y-Axis Travel- +2.17”/-1.97”
B-Axis Travel- 20.08”
X-Rapid-787ipm
Z-Rapid-945ipm
Y-Rapid-393ipm
B-Rapid-708ipm

TWO AVAILABLE - One is in original shipping wrap/NEVER USED
