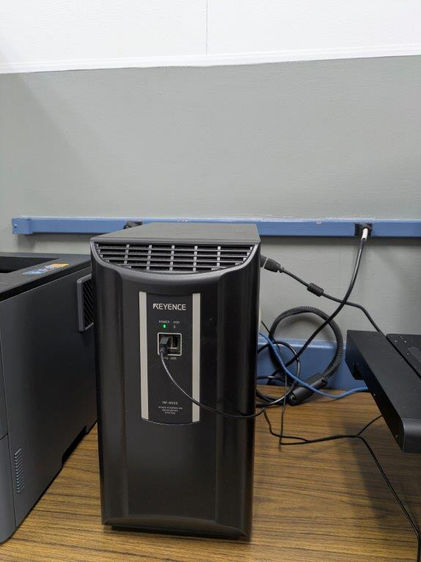

2025 Keyence IM-8030

Stage Size: 300 × 200 mm (11.81″ × 7.87″)

Measurement Modes: Wide-Field (300 × 200 mm) / High-Precision (225 × 125 mm)

Image Sensor: 1″ 20-megapixel monochrome CMOS

Lens: Double telecentric lens

Measurement Accuracy (±2σ): Wide-Field ±(2.8 + 0.02D) μm; High-Precision ±(1.4 + 0.04D) μm

Repeatability: Wide-Field ±1 μm; High-Precision ±0.5 μm

XY Stage Movement: 200 × 100 mm (electric); Z Range: 75 mm

Stage Load Capacity: 7.5 kg

Display: 12.1″ LCD (1280 × 800 WXGA)

Connectivity: LAN (RJ-45), USB 3.1 (×4), USB 2.0 (×4), DVI-D

Power: 100–240 VAC, 50/60 Hz; 430 VA or less

Operating Temp: +10 to +35°C

Weight: approx. 33 kg
