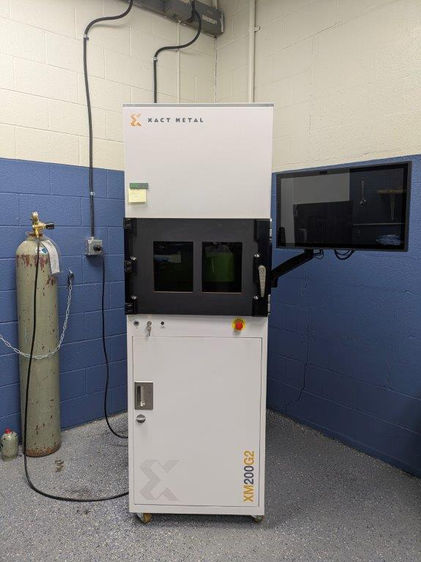

2024 Xact Metal XM200G2

Specifications:

Build Volume: 150 x 150 x 150 mm (or 125 x 125 x 125 mm)
Laser Type: Dual Yb Fiber Laser — 100W, 200W, or 400W (per laser)
Build Speed: ~12 to 16 cc/hr (dual laser)
Spot Size: ~50 or 100 µm
Layer Thickness: 20 to 100 µm
Jogging Speed: Up to 20.7 m/sec (standard galvo) / 34.6 m/sec (performance galvo)

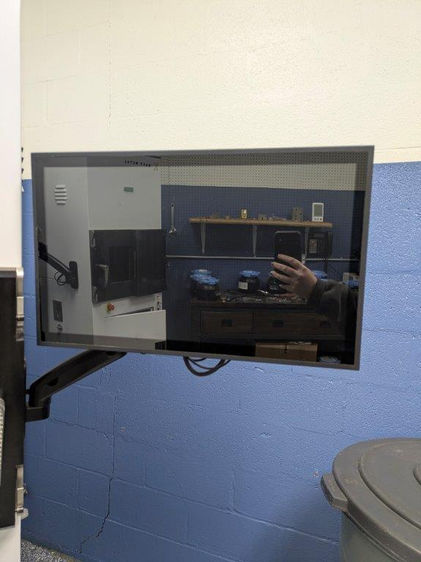

User Interface: 19.5" touchscreen
Electrical: 100–240V, Single Phase, 50/60 Hz, 1.5 kW (2.0 kW peak)
Footprint: 650 x 780 x 1,930 mm (W x D x H) / 25.6 x 30.7 x 76 in
Weight: ~425 kg (~940 lbs)
Compatible Materials: Aluminum Si10Mg, Bronze, Copper (C18150), Stainless Steel (316L, 17-4 PH, 15-5, 400 Series), Inconel 718 & 625, Cobalt Chrome F75, Hastelloy X, Titanium Ti64, Maraging Steel M300
Glovebox: Available
- Open Material Platform: Yes
