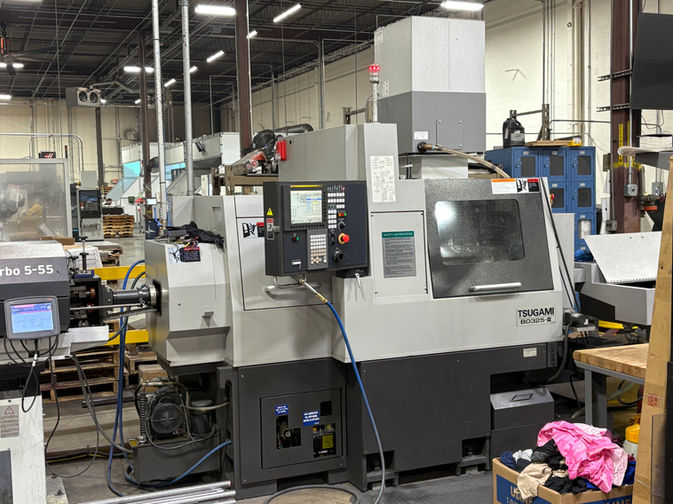

2022 Tsugami B0325-III
Specifications:
Control: FANUC 0i-TF Plus
CAPACITY Max Bar Stock Diameter: 32 mm / 1.26" Sliding Headstock / Guide Bushing: Yes
Max Headstock Stroke (w/ guide bushing): 330 mm / 12.99" Max Machining Length (chucker mode): 70 mm / 2.76" AXES & TOOLING Number of Axes: 5 Tool Positions (standard / max): 31 / 32
Live Tool Positions (std / max): 4 / 8
Live Tool Speed: 6,000 rpm
Deep Hole Drill Holder (beside sub spindle): up to 140 mm length, standard 4-Spindle Cross Rotary Tool (front tool post):
Standard SPINDLE Main Spindle Speed: 200 – 8,000 rpm Sub Spindle Speed: 200 – 8,000 rpm Main Spindle Motor: 3.7 / 5.5 kW PERFORMANCE Rapid Traverse Rate: 35 m/min Thermal Displacement Compensation: Standard 3-Toggle Clamping System: Standard
MACHINE SIZE & WEIGHT Footprint (W x D x H): 2628 x 1280 x 1970 mm (103.5" x 50.4" x 77.5")
Weight: 4,000 kg / 8,814 lbs
STANDARD OPTIONS AVAILABLE - Rear Drive Rotary Tool - Back Rotary Tool - Rotary Tool Beside Sub Spindle - Chucker Kit - Bar Feeder - High Pressure Pump - Mist Collector
Equipped Options:
FMB Turbo 5-55,
LNS Chip Conveyor.
Rear Work Collection through Sub Spindle Outside Machine 42" Overall Length, 6# Fire Trace.
