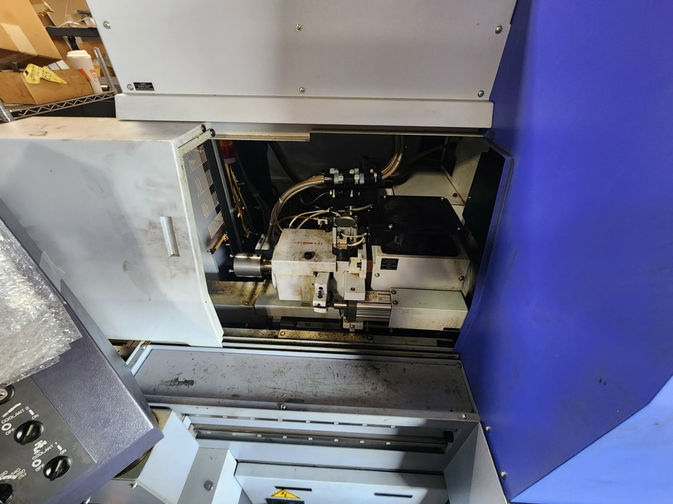

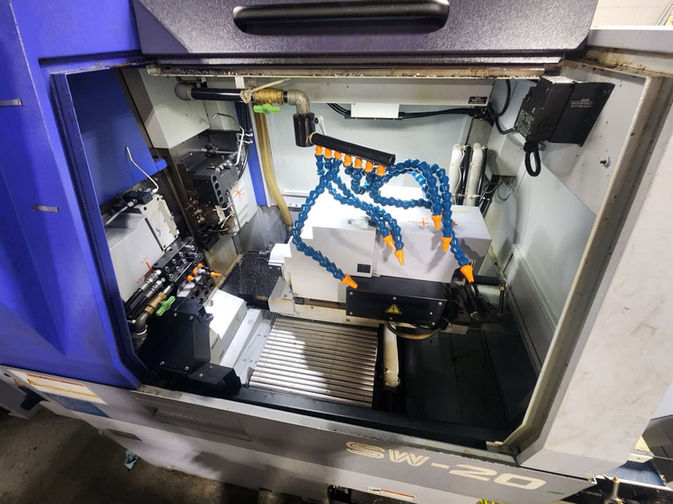

2021 Star SW-20 CNC Swiss Lathe

Manufacturer Star Micronics Co., Ltd.
Model SW-20
Year 2021
Machine Type CNC Swiss-Type Sliding Headstock Lathe
Control Fanuc 32i-B CNC Control
Bar Capacity 0.79 in (20 mm)
Max Machining Length (per chuck) 8 in (203 mm)
Main Spindle Speed Up to 10,000 RPM
Sub Spindle Speed Up to 10,000 RPM
Number of Axes 10 (including dual Y-axes)
Main Spindle Motor 3.7 / 7.5 kW (5 / 10 HP)
Sub Spindle Motor 3.7 kW (5 HP)
Live Tool Speed Up to 10,000 RPM
Cross-Drilling Stations 6 front + 5 rear
Back-Working Tools 8 positions (drilling, milling, tapping)
Total Tool Capacity 30+ tools (depending on setup)
Coolant System Flood or high-pressure coolant (up to 1,000 psi)
Bar Feeder FMB
Machine Dimensions (L × W × H) ≈ 110″ × 55″ × 70″ (2,794 × 1,397 × 1,778 mm)
Machine Weight ≈ 6,600 lb (3,000 kg)
