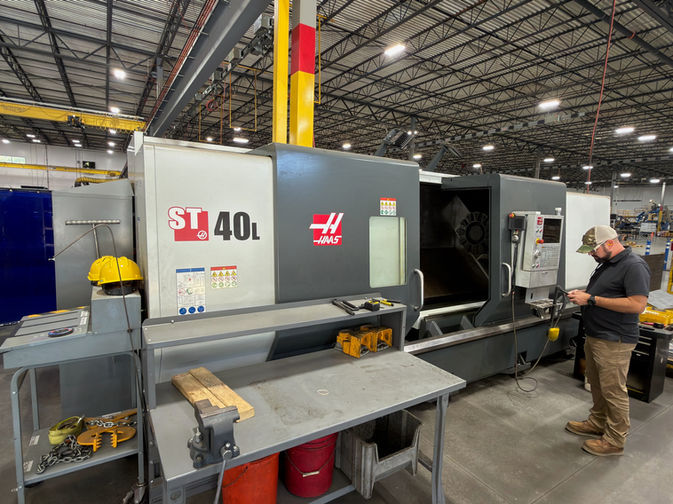

2021 Haas ST-40L
Florida
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Overview
Year:
2021
Model:
ST-40L
Make:
Haas
Location:
Florida
Can Seller Load?
No
Under Power:
Yes
Specifications:
Chuck size: 15″ (381 mm)
Bar capacity (through spindle): 4.0″ (102 mm)
Maximum spindle speed: 2,400 rpm
Spindle power: 40 hp (29.8 kW) vector drive
Spindle nose / bore: A2-8 / 117.3 mm (4.62″)
Maximum turning diameter: 25.5″ (648 mm)
Swing over cross slide / tailstock: 34.5″ (876 mm)
X-axis travel: 17.0″ (432 mm)
Z-axis travel: 80.0″ (2,032 mm)
Rapid traverse (X / Z): 18.0 m/min (X) / 8.1 m/min (Z)
Axis thrust (X / Z): 24,465 N / 24,465 N
Tool turret: 12-station bolt-on (BOT)
Power requirements: 440 VAC
Air requirement: 4 scfm @ 100 psi
Weight: 13,068 kg
Machine length: 203.2″ (5,162 mm)
Machine width: 102″ (2,591 mm)
Control: Haas Next Generation Control (NGC)
