2021 DMG DMU 75

Specifications:

NC swivel rotary table:

Table plate C-axis: d 650 mm / 25.6 in,

Integrated in rigid table 800 mm x 650 mm / 31.5 in x 25.6 in

Traverse range:

X = 750 mm / 29.5 in (longitudinal)

Y = 650 mm / 25.6 in (transverse)

Z = 560 mm / 22 in (vertical)

Speed range: max. 20,000 rpm

Spindle taper: HSK-A 63 to DIN 69893

35 kW / 46.9 hp (40% duty cycle);

25 kW / 33.5 hp (100% duty cycle)

Chain magazine 60 magazine pockets

Equipped with:

P-B0109* CELOS with Heidenhain TNC 640 includes 21.5" ERGOline Touch® Control with Multi-Touch-Screen

P-K0775 Economic Processing Package, consisting of:

P-K0220* Infrared measuring probe Type Renishaw PP60 optical (OMP 60)

P-K0224 3D quickSET Tool kit for control and compensation of the cinematic accuracy of 4 / 5 axis machine configurations

P-H0152 ATC (Application Tuning Cycle) programmable feed parameter selection for machining task: accuracy/ surface/ speed

P-K0706 Economic Production Package (AM / AS), consisting of:

P-K0398 Production package:

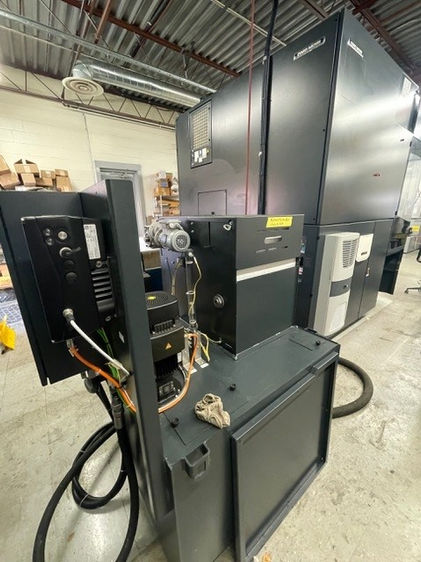

Scraper flight conveyor with coolant unit 600 l/160 gallon, paper band filter Discharge height: 950 mm / 37.4 in Width: 670 mm / 26.4 in.  Internal coolant supply 40 bar/23 l/min / 580 psi / 6 gallon/min through spindle centre (AD)

P-G0026 Cooling by air blast through spindle centre, selection with M function

P-K0255 Rotating clear-view window

P-K0365 Coolant ring jetfor vertical headstock, 16 water jets, 7 air jets

P-G0085 Oil and emulsion mist separator Mechanical filter. Throughput volume 1,100 m3/h

P-K0686 Tool measuring in machining area Blum Laser DIGILOG. Tool length and diameter measurement vertically

P-K0816* Increased accuracy

P-H0143 Electronic handwheel

P-L0056 Safety package for power failure: Voltage control with fast deceleration trigger

Controlled shut down of the control Display of last executed program number
