2015 Eurotech Multiflex 735SLY

Eurotech Elite Multiflex 735SL-Y 5-axis CNC Turning Center, New in 2015
5-axis: X, Y, Z, C1, C2
VERY Low hours - sounds like new

Both Main and Sub Spindle motors have been replaced as part of the testing process.

Equipped With

Fanuc 32i-B CNC Control, Axes: X,Y,Z,C1,C2
Parts Catcher AND Parts Conveyor
Chip Conveyor
OD/ID Tools included

Specifications

Swing-22.83"

Machining Length-22.04"

# Axis-5

Bar Capacity-2.56"

Chuck Size-6"

Distance Between Centers-22.04"

Turning Diameter-12.6"

Power-20 hp

Max RPM-4,000 RPM

Tailstock-No

Live Tooling-Yes

Sub Spindle-Yes

Control-CNC (FANUC 32I-B)

Dimensions-167" (w/ Conveyor) x   77" x 79"

Weight-11,400 lbs

To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

General Specifications:
Bar Capacity: 2.56"
Machining Diameter: 12.60"
Machining Length: 22.04"
Swing Over Diameter: 22.83"
Y-Axis Stroke: +2.36 / -1.97"

Main Spindle
Draw Tube Capacity: 2.56"
Spindle Bore: 2.76"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Spindle Nose: ASA 6"

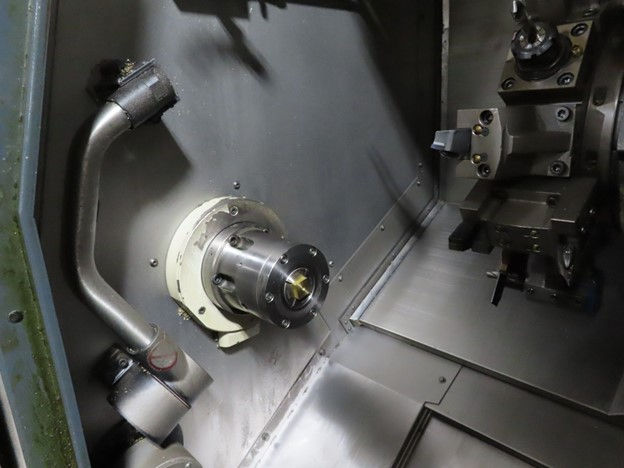

Sub Spindle
Bar Capacity: 1.77"
Spindle Bore: 2.16"
Spindle Speed: 5,000 RPM
Spindle Motor: 15 HP
Spindle Nose: ASA 5"

B-Axis Travel: 19.29"
Rapid Traverse Rate (B-Axis): 1181 IPM
Spindle Positioning (Fully Programmable): .001 Degree

Turret
Indexing Time: 0.2 Seconds/Position
Indexing Type: Bi-Directional
Number of Stations: 12

Live Tools
Number of Positions: 12
Motor: 5 HP
Tool Speed: 4,000 RPM
Drilling Capacity: 25/32"
End Mill Capacity: 25/32"
Machining Capacity: .5"

C-Axis
Main / Sub Spindle: Yes
Spindle Positioning: Full C
Command Increment: 0.001 Degree
Positioning System: Scale Feedback
Degree of Movement: Programmable
Rapid Speed Rate: 100 RPM

General
Voltage: 400 V AC/3 Phase
Air Required: 80 PSI @ 4 CFM
Amperage Draw: 45 Amp

Machine Dimensions (with Chip Conveyor): 77" x 79" x 167"
Machine Weight: 11,400 lbs
