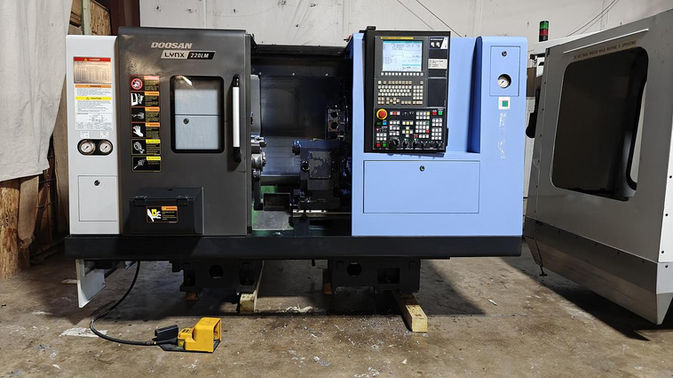

2015 Doosan Lynx 220 LMA

Swing Over Bed (in)-20.1

Swing Over Saddle (in)-11.4

Max. Turning Dia. (in)-9.8

Max Turning Length (in)-20.1

Spindle Bore / Bar Working Dia. (in)-2.4 / 2

X-Axis Travel (in)-6.9

Z-Axis Travel (in)-21.7

Max. Spindle Speed (rpm)-6,000Spindle

Nose-A2#5

Rotary Tool-12 Position

Min. Spindle Indexing Angle (C-Axis)-0.001 Degree Turret

Tailstock Quill Diameter (in)-2.6

Tailstock Quill Travel (in)-3.1

Main Spindle Motor (hp)-20

Rotary Tool Spindle Motor (hp)-5

Approx. Machine Dimensions (in)-103.5L x 63W x 65.2H

Approx. Machine Weight (lbs)-7,300
