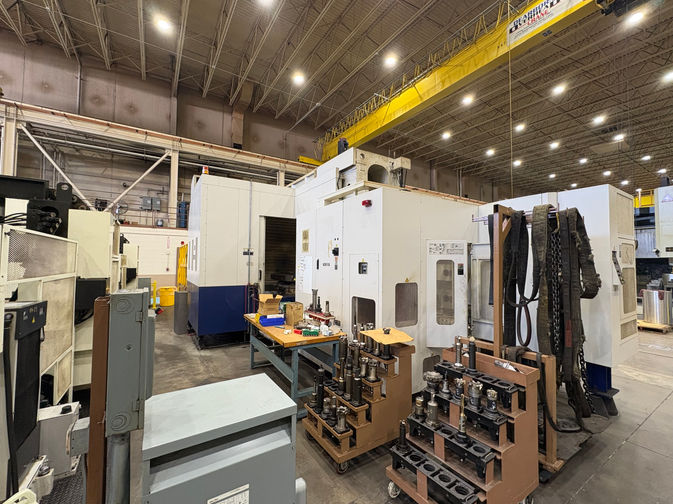

2011 Tongtai HG-1250
Specifications:
Table Size: 1250 x 1250 mm
Max Workpiece Dimension: Ø1970 x H1500 mm
Max Load Capacity: 4,000 kg
Index Positioning: 0.001°
X / Y / Z Axis Travel: 2000 / 1400 / 1250 mm
Distance Spindle Center to Table Top: 0 - 1400 mm
Distance Spindle Nose to Table Center: 400 - 1650 mm
Table Height from Floor: 1300 mm
Spindle Taper: 7/24 Taper No. 50 (BT50 / CAT50)
Spindle Speed: 6,000 RPM
Spindle Motor: 22 / 18.5 kW (50% ED)
Spindle Bearing Diameter: Ø110 mm
X / Y / Z Rapid Traverse: 20 / 20 / 20 m/min
Cutting Feed Rate: 1 - 10,000 mm/min
ATC Tool Capacity: 60 (Optional 90 / 120)
Max Tool Diameter: Ø125 mm (Ø245 mm w/o adjacent tool)
Max Tool Length: 610 mm
Max Tool Weight: 25 kg

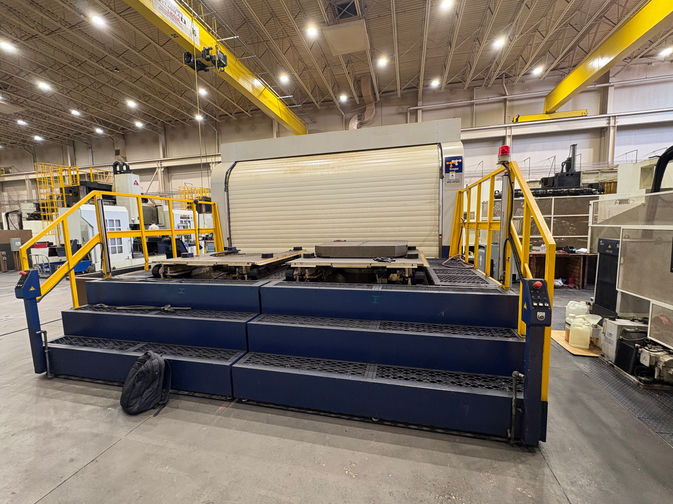

APC: 2 pallets, side-by-side
Machine Dimensions (L x W x H): 8600 x 5000 x 4030 mm
Machine Weight: 40,600 kg
