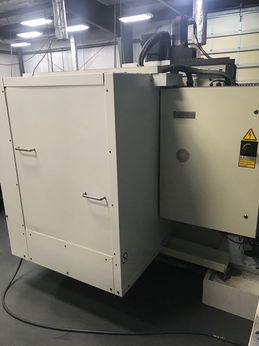

2007 Fadal VMC3016 FX

Specifications:

  • Model: Fadal VMC-3016FX

  • Year: 2007

  • X-axis travel: 30" (762 mm)

  • Y-axis travel: 16" (406 mm)

  • Z-axis travel: 20" (508 mm)

  • Table size: 39" × 16" (914 mm × 406 mm)

  • Max table load: 2,736 lb (≈ 1,240 kg)

  • Spindle nose to table: 4" – 24" (optional 4" – 32")

  • Spindle taper: CAT-40

  • Spindle speed: 8,000 RPM

  • Spindle motor: ~15 HP AC vector drive

  • Tool changer: 21-position automatic tool changer

  • Cutting feed rate: up to 800 IPM

  • Rapid traverse: up to 1,000 IPM

Get Current Price & Availability

Machines sell quickly. Request current price and availability now.

​

100% Secure | your information is safe with us

ChatGPT Image Feb 27, 2026, 07_32_15 PM--.png

See What Your Machine Is Worth

Overview

Year:

2007

Location:

Tennessee

Model:

VMC3016FX

Can Seller Load?

No

Make:

Fadal

Under Power:

Yes

*All specifications are assumed to be correct but must be confirmed by the purchasing entity.
