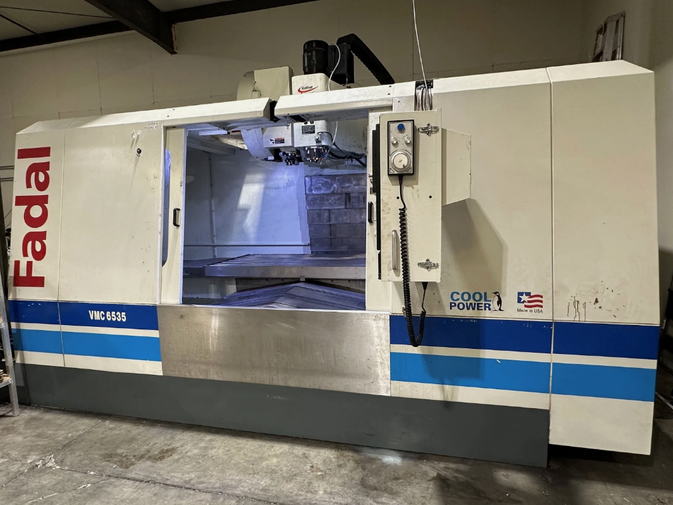

2001 Fadal VMC6535
Dealer
North Carolina
All specifications are assumed to be correct but must be confirmed by the purchasing entity.
Overview
Year:
2001
Location:
North Carolina
Model:
VMC6535
Can Seller Load?
No
Make:
Fadal
Under Power:
Yes
Specifications:
Specifications
CNC Control-Yes
Type of CNC Control - Fadal 32MP
# Axis 3
Table Working Surface - 75" x 35"
Table Load Capacity-4,250 LBS
X-Axis (Longitudinal Travel)-65"
Y-Axis (Cross Travel)-35"
Z-Axis (Vertical Travel)-30"
Max/Min Clearance Table Top to Spindle Nose -33.5"
X-Axis Rapid Traverse Rate-900 IPM
Y-Axis Rapid Traverse Rate-900 IPM
Z-Axis Rapid Traverse Rate-700 IPM
Spindle Horsepower-25 HP
Spindle Speed Range-0 - 10,000 RPM
Spindle Taper-Cat 40
Coolant Thru Spindle-yes
Automatic Tool Changer Capacity (ATC)-24
Approximate Machine Dimensions-192" x 120"
Approximate Machine Height-120"
Approximate Machine Weight-32,000 lbs
Rigid Tap- Yes
32MP control, 4 Meg memory 10k RPM spindle.
Machine is under power and can be inspected by appointment.
Renishaw TS27r tool probe ( purchased new and added by me in 2021 )
Machine has a new spindle 3/9/2024.
New belts replaced with the spindle
New X axis Amplifier on 3/9/2024
Chiller pump and motor (recently replaced)
The spindle was replaced by a guy to didn’t set the tram 100%. Over an 8” length it’s off approx. .0003
The jog handle has an issue with it. You can’t change the increment on the handle but on the control. It jogs with the handle.
