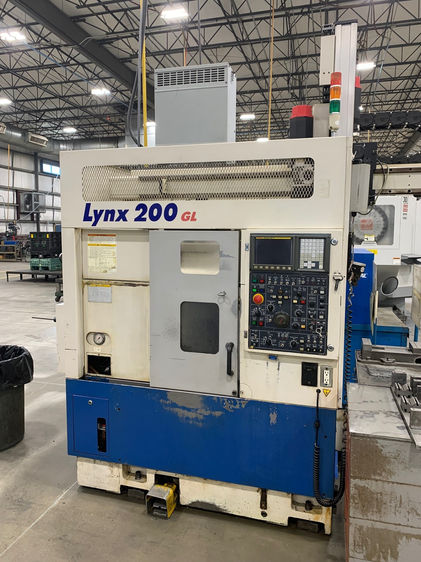

1999 Daewoo Lynx 200

Max Turning Diameter: 11.0″

Max Turning Length: 11.8″

Max Bar Capacity: 1.75″

Swing Over Bed: 18.0″

Distance Between Centers: 20.0”

X Axis Travel: 6.3″

Z Axis Travel: 13.0″

Rapid Traverse X Axis: 787 IPM

Rapid Traverse Z Axis: 945 IPM

Spindle Nose: A2-5

Spindle Bore: 2.0″

Spindle Speed: 35 – 5000 RPM

Spindle Motor: 15hp

Turret Capacity: 12 Stations

Turret Index Time: 0.15 Second

No Tailstock

Equipped With:

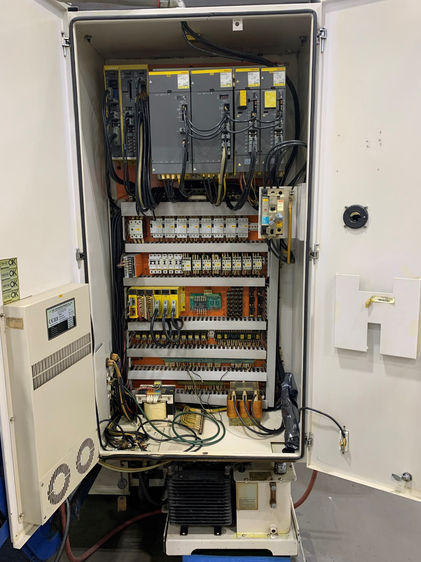

Fanuc 21-T series CNC Control

Rigid Tapping

8″ 3 Jaw Kitagawa Hydraulic Chuck

Tool Presetter

Parts Catcher

RS-232

Coolant System

Foot Switch

Turbo Chip Conveyor
